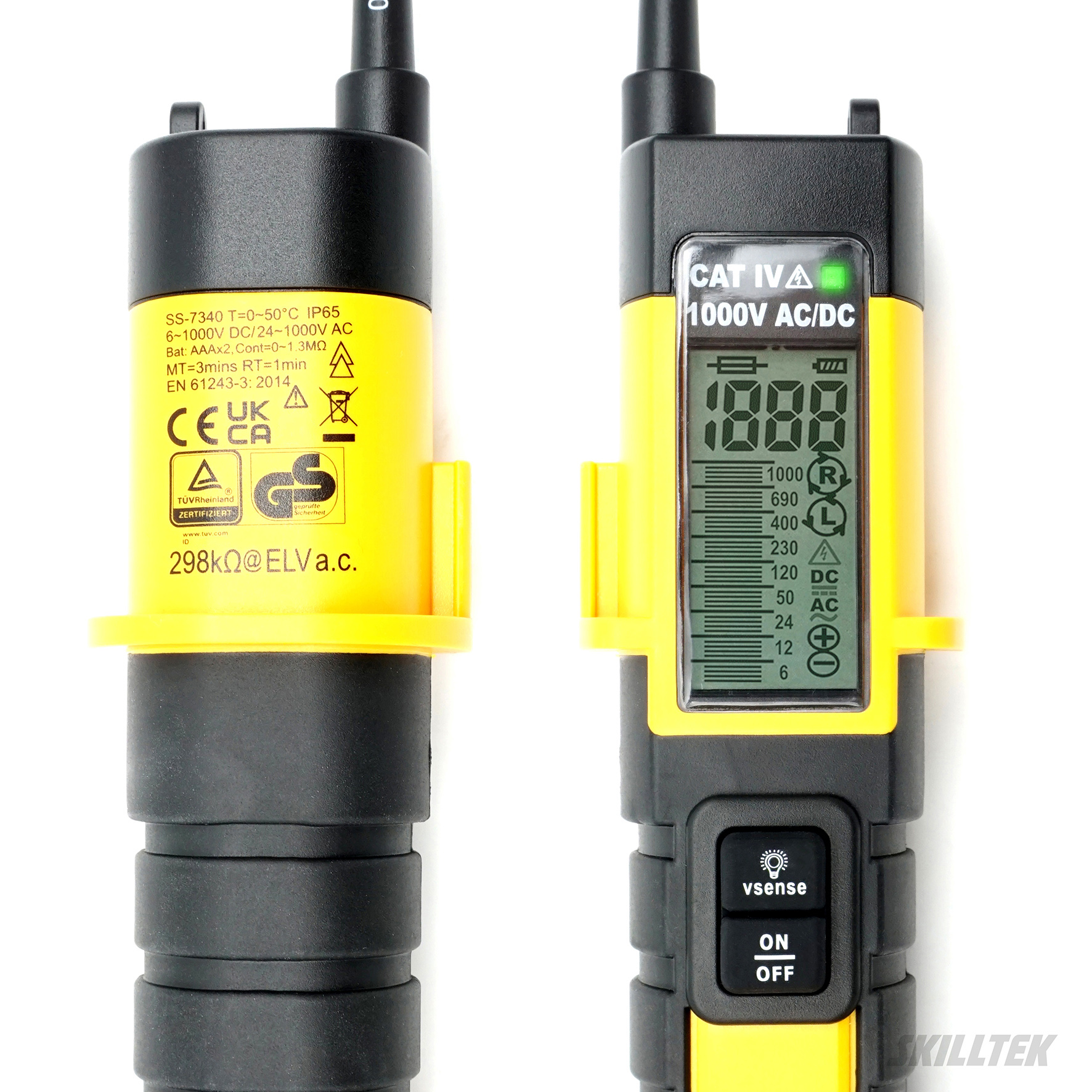

6-1000V AC/DC Multi-function Voltage Tester is manufactured by Global Tools Supplier SKILLTEK from Taiwan.
Product Description:
Designed for professional electricians, this 2-pole voltage tester combines high-quality voltage and continuity testing in one versatile tool. Whether you’re working with DC 6-1000V or AC 24-1000V, this tester ensures accurate and reliable results. It’s particularly suitable for high voltage checks on electric and hybrid vehicles, thanks to its CAT IV 1000V voltage category rating.
Product Advantages:
- High Voltage Safety: CAT IV 1000V rating, perfect for electric/hybrid vehicle testing.
- Professional Approvals: GS and CE are approved for quality and safety.
- Durable Design: The IP65 protection class ensures durability in various working environments.
- User-Friendly Features: Auto power off, dual switch protection, and illuminated testing point enhance usability.
- Accurate Readings: High-resolution LCD and reliable voltage measurement provide precise data.
- Versatile Testing: Supports a wide range of tests including polarity, phase rotation, and continuity tests.
Voltage Measurement | |
---|---|
Voltage Range | 6-1000VDC |
24-1000VAC | |
Voltage Bar Indication | 6/12/24/50/120/230/400/690/1000V |
Accuracy | ±(3%+3)V |
Response Time | < 1s at 90% each voltage |
Maximum Current | < 3.5mA |
High Voltage Indication | |
Voltage Range | 100V-1000V AC/DC |
System | Three-phase |
Phase Angle | 120±5 degree |
Non-Contact Voltage Sensing | |
Voltage Range | >90VAC |
Continuity | |
Continuity Resistance | 0~1.3MΩ |
Continuity Current | ≦5μA |
Operating Environment | |
Battery | 3V (AAA 1.5V *2) |
Temperature | 0~50℃ operation -10~60°C storage |
Humidity | MAX 85% RH |
Safety | |
CAT Category | CAT IV 1000V |
GS LVD | EN 61243-3 |
EMC | EN 61326-1 |
IP Code | IP65 |
Pollution Level | 2 |
